The Classic MODE XO is equipped with every comfort and convenience you need to chase new horizons.
The Classic MODE XO is equipped with every comfort and convenience you need to chase new horizons.
CLASSIC XO See Through Price
$195,787.53*
EXPLORE
COLOR SELECTION:
Blue Grey
Pebble Grey
Arctic White
XO Floorplan Highlights
Enjoy the ease of thoughtful, streamlined, intuitive design that allows you to effortlessly shift into whatever MODE of adventure you choose with the fewest hassles possible.
BoomBox™ Shower
DreamWeaver™ Bed
ElectricSlide™ Loveseat
Versatile and luxurious

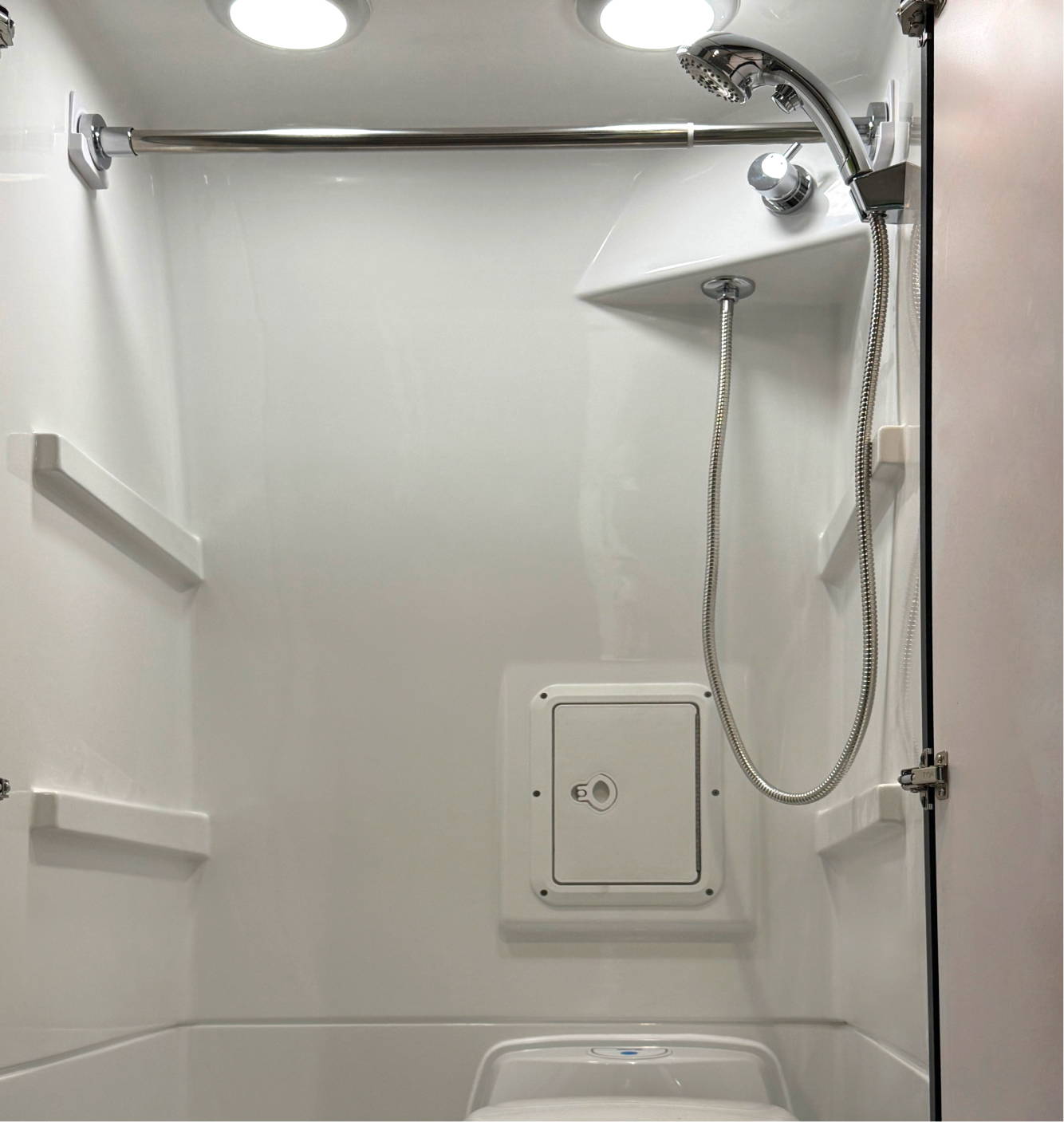

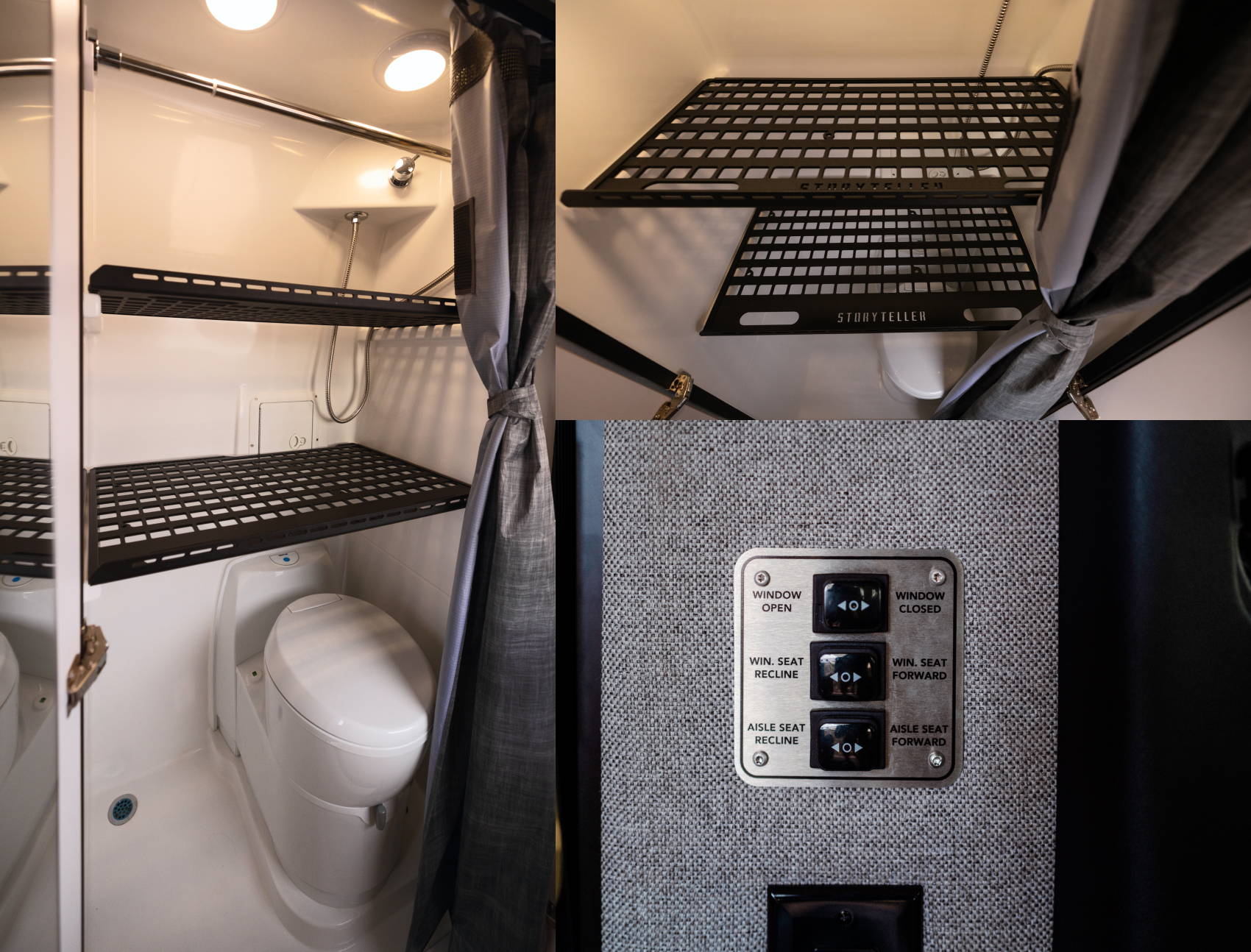

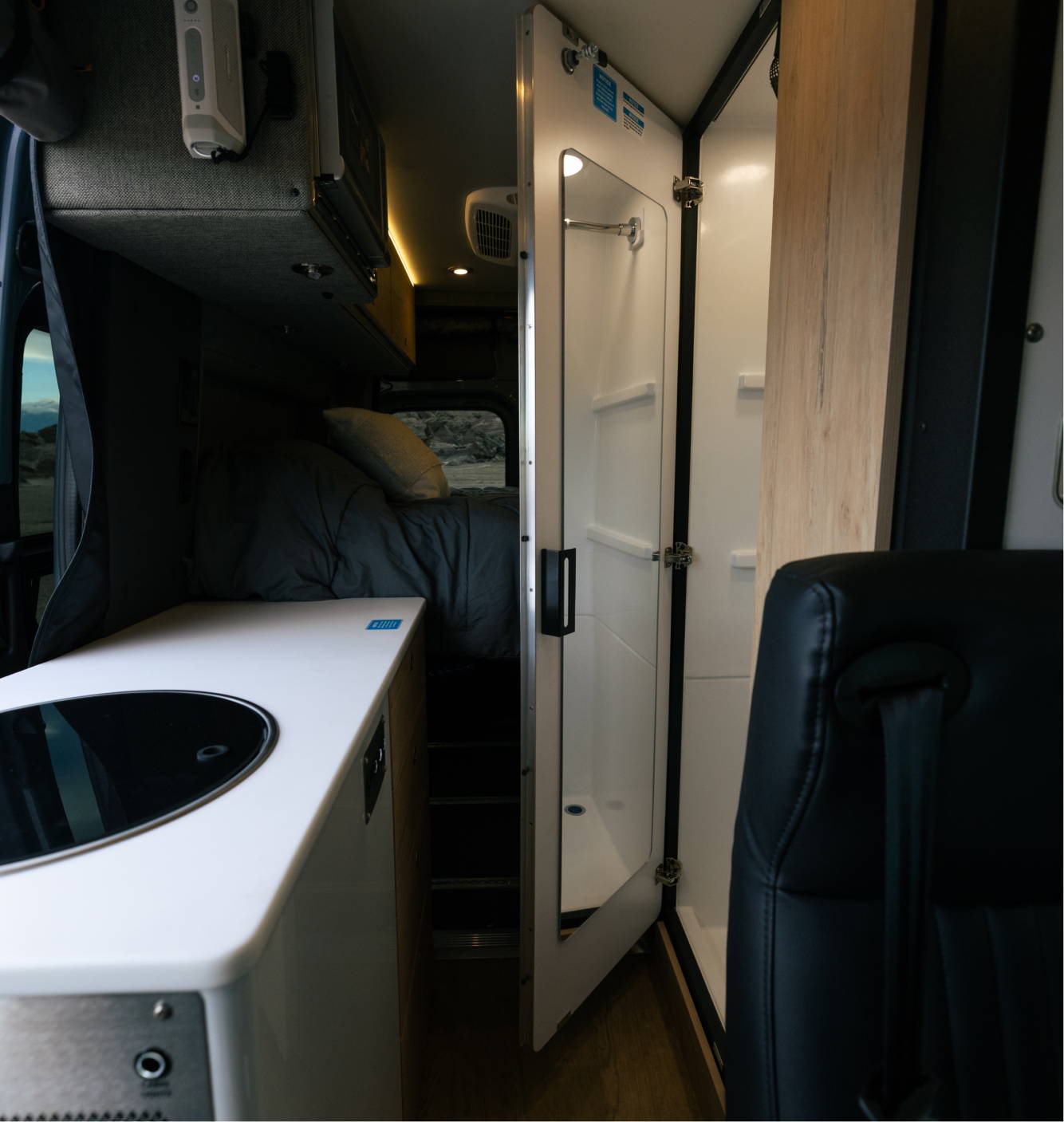

The BoomBox™ is the most versatile full bath on wheels. Use as a wet bath, a drying closet or storage space.
RELAXING HOT SHOWER
REMOVABLE SHELVES
DOUBLE OPENING DOORS
TOILET - EXTERIOR CASSETTE REMOVAL hatch
CLOSET ROD
DRYING CLOSET
full-length mirror
odor and moisture CONTROL
Simple and Comfortable

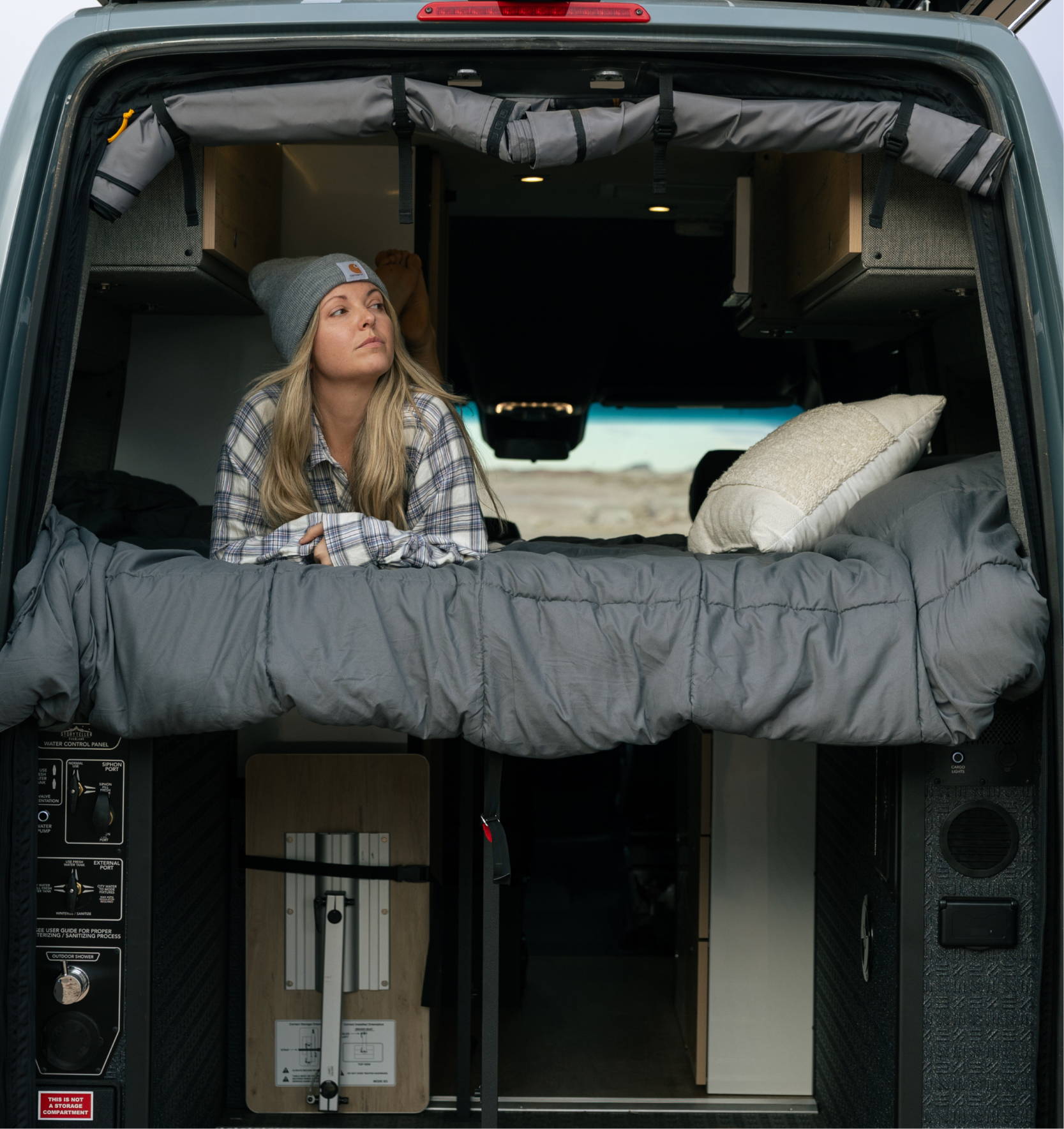

As a bed, the DreamWeaver™ promises the perfect night’s rest anywhere your journey takes you. When not in use it easily transforms into a standing height, multi-use worksurface.

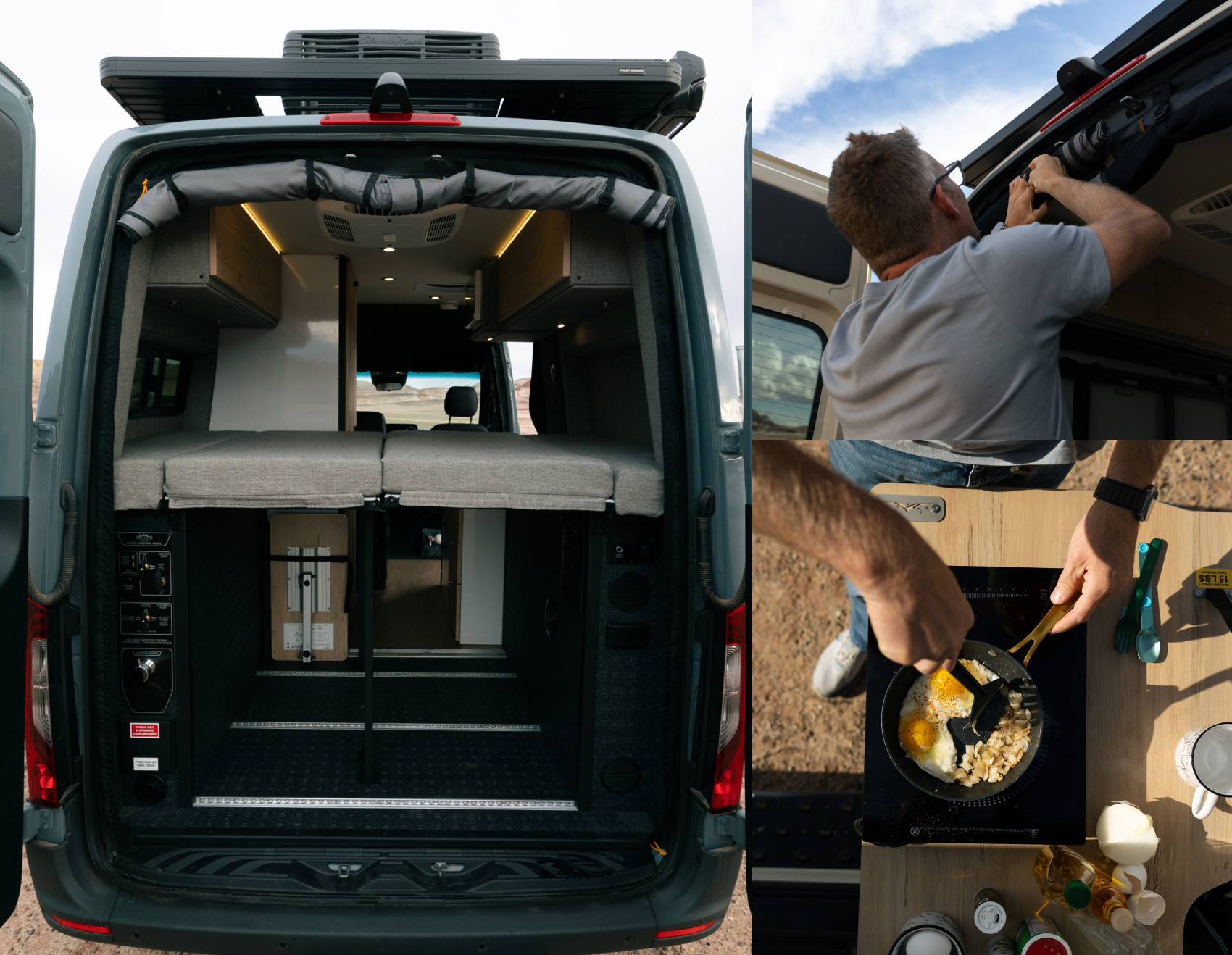

Bed Easily Folds Up to Reveal Workspace
Workspace Easily Folds Up to Maximize Garage space

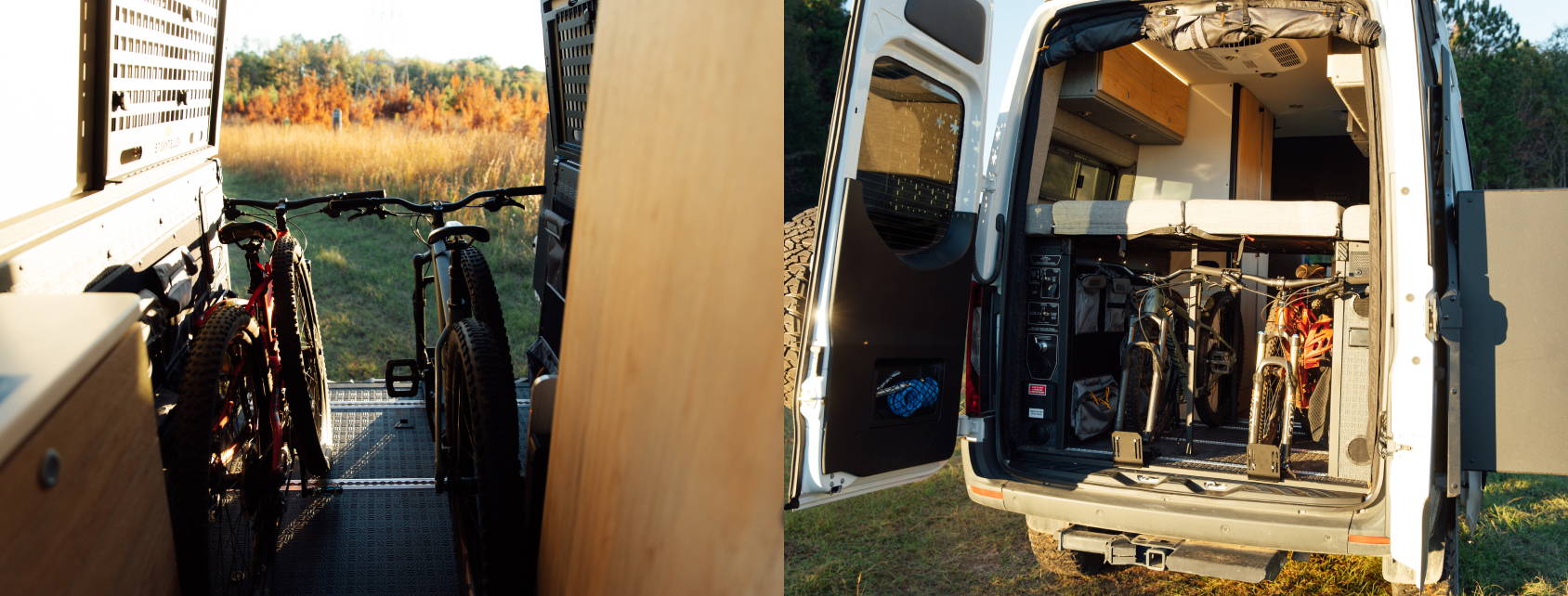

Ample Storage in GearGarage below DreamWeaver
Sleep Sideways with Flares at Head & Foot of Bed
More than just a bench seat

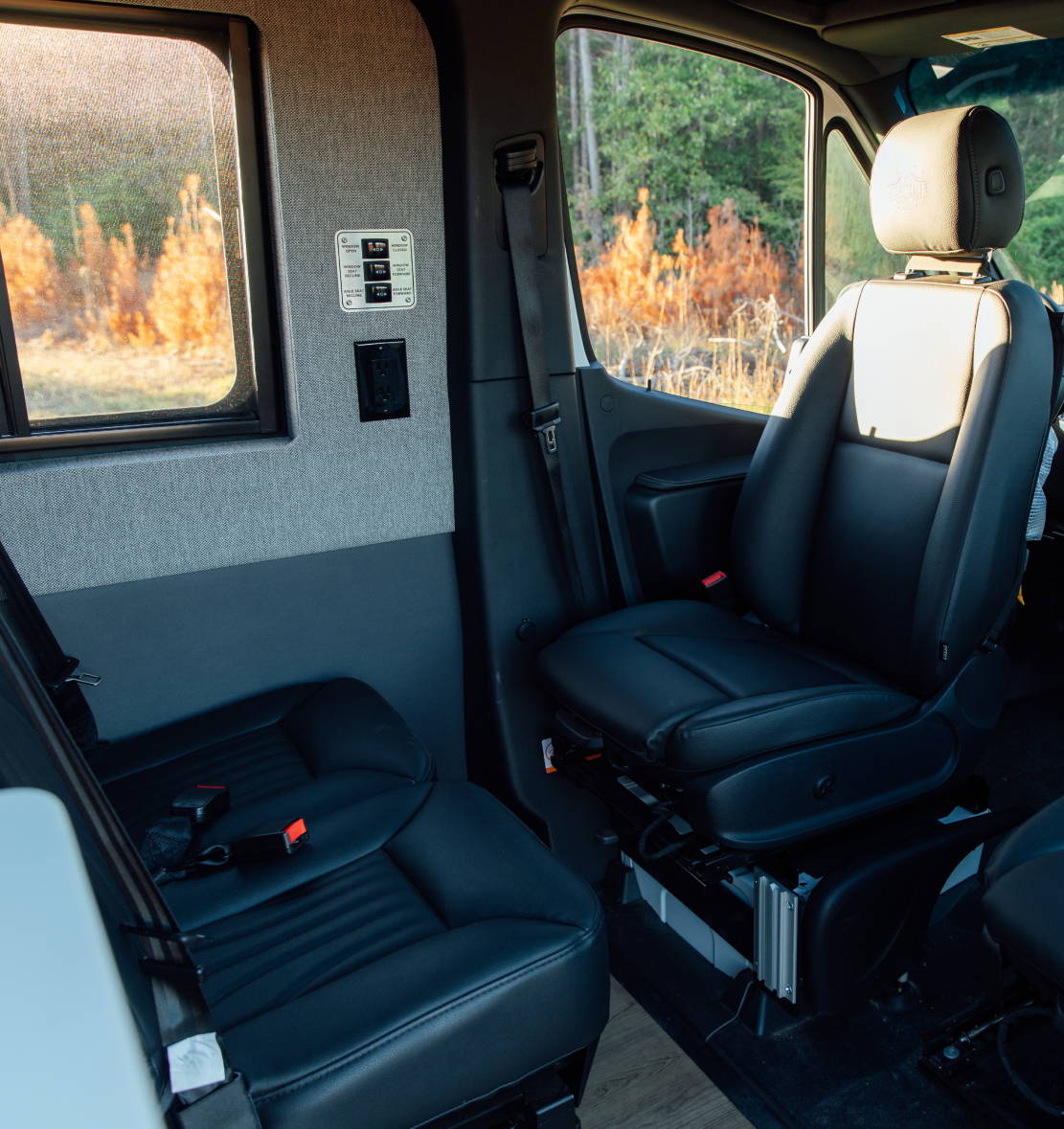

The ElectricSlide™ Loveseat safely accommodates two adults or up to two child seats. More than just a bench seat – the side slide adjustment and power recline promise first class comfort for your journey.
- Independent 2-seat power recline comfort.
- Seats slide together to enable greater aisle width when needed.
- Seats slide apart for roomier seating and peace between siblings.
opening entry:
25" W

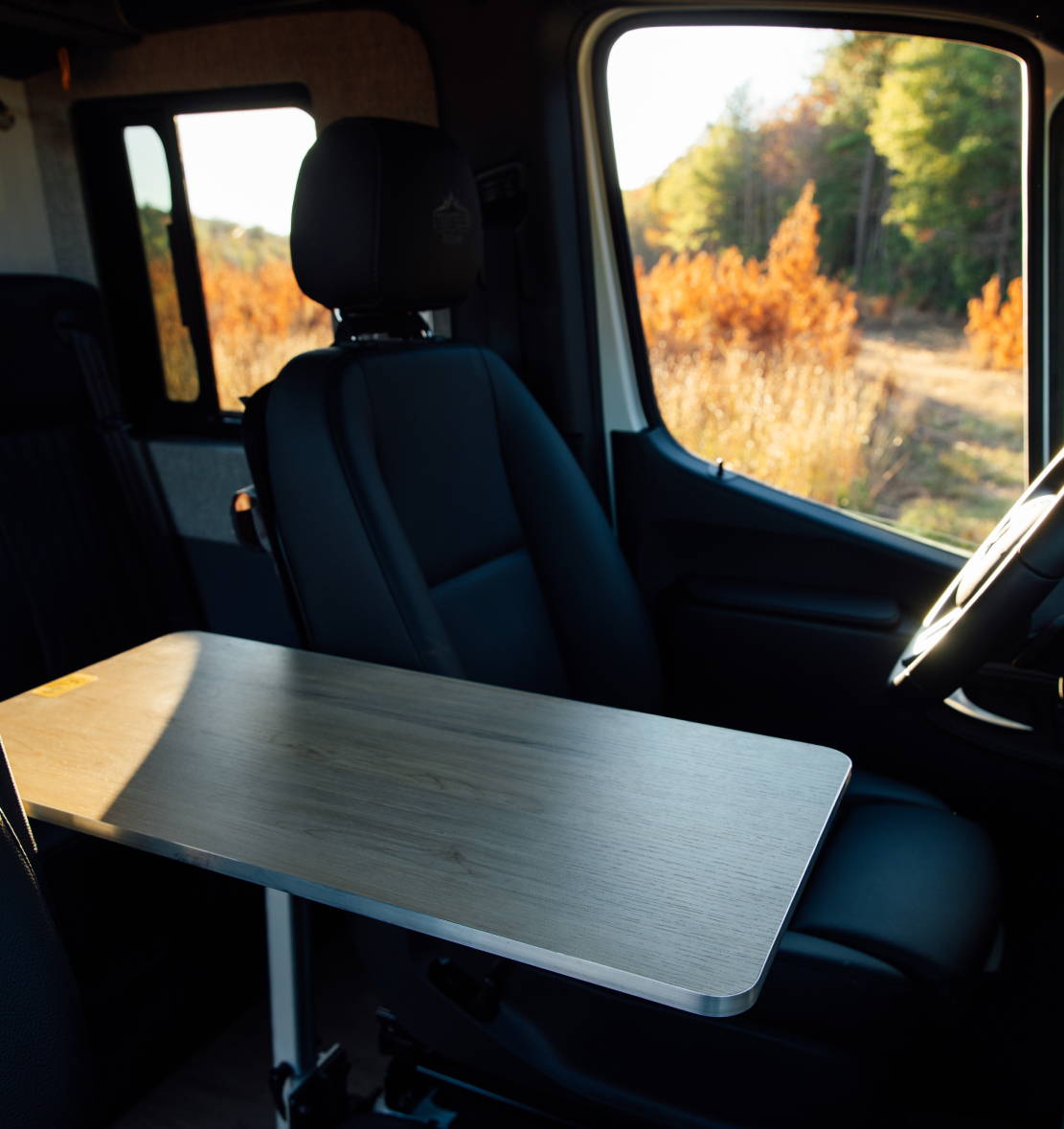

table:
27" W x 13.5" D
ElectricSlide™ loveseat:
33.5" W x 16.25" D
EXTENDED: 40" W X 16.25"
galley: 20.5" x 42"
sink: 15" x 7.5"
BoomBox™ bathroom:
31" w x 25 "D x 70" h
Removable shelves:
1) 30" W x 20" D
2) 30" W x 16" D
Dreamweaver™ Bed/Convertible
Work Surface:
BED: 56" W X 79" D
GARAGE WITH BED UP: 45" W X 74" H
GARAGE WITH BED DOWN: 45" W X 37" H
*ALL MEASUREMENTS ARE ESTIMATED AND CAN VARY

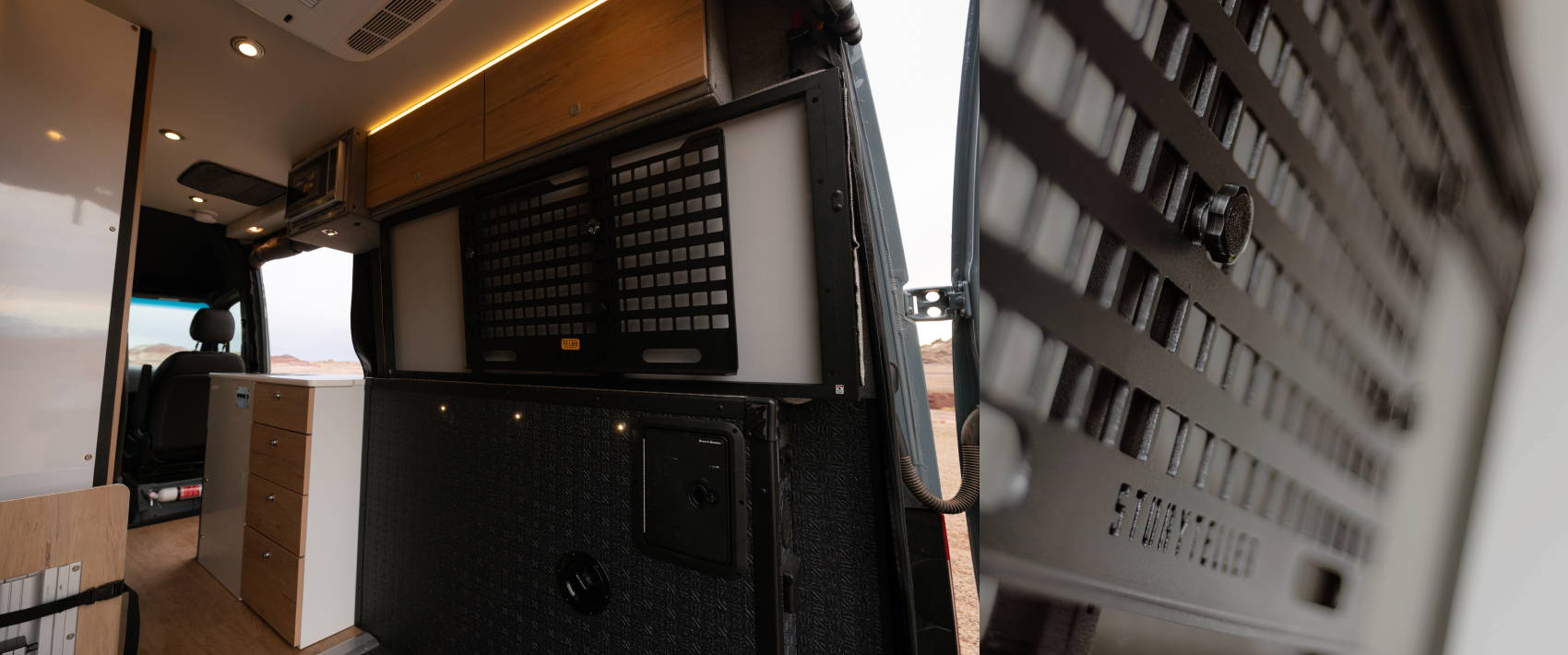

CLASSIC Xo interior

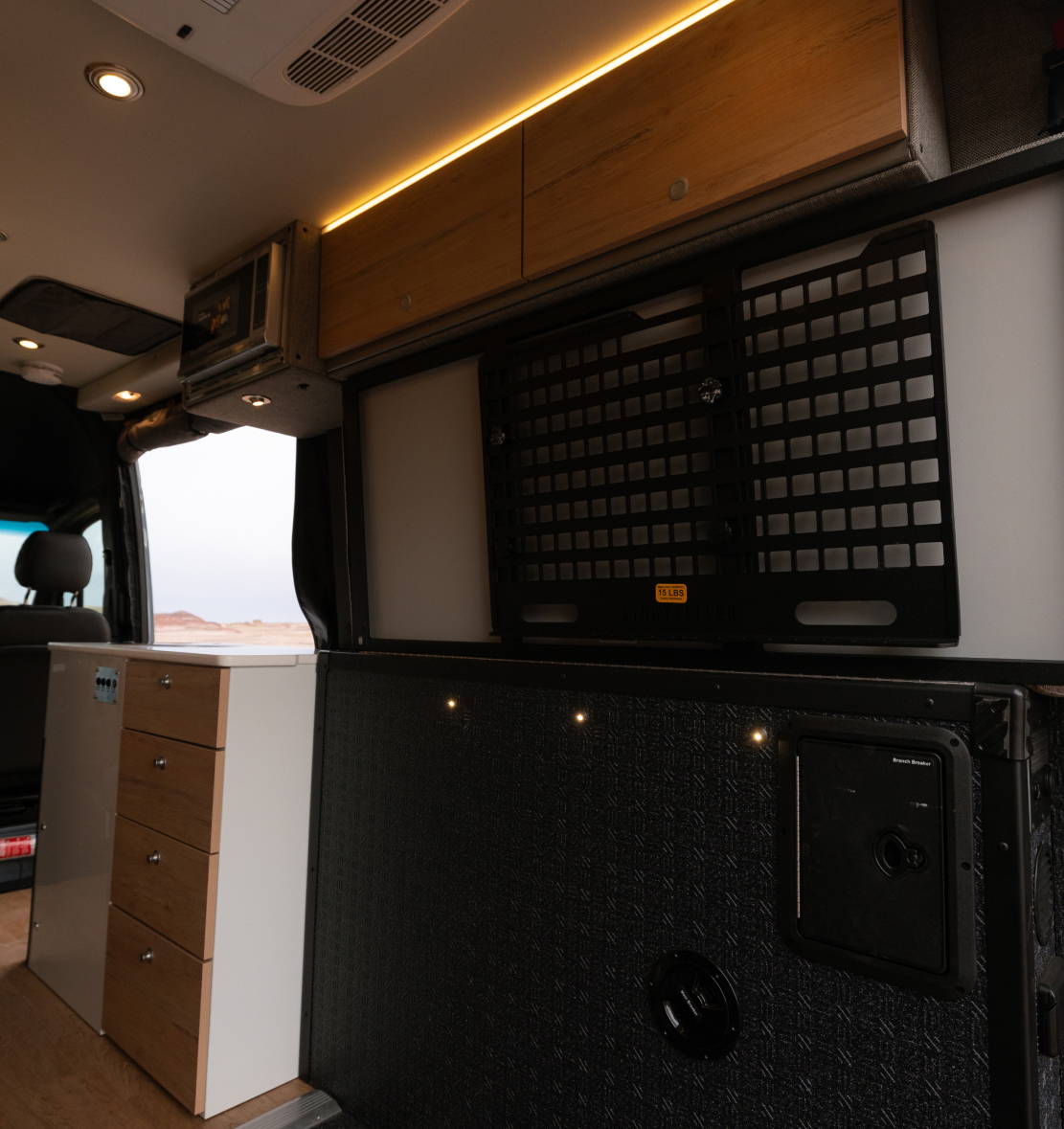

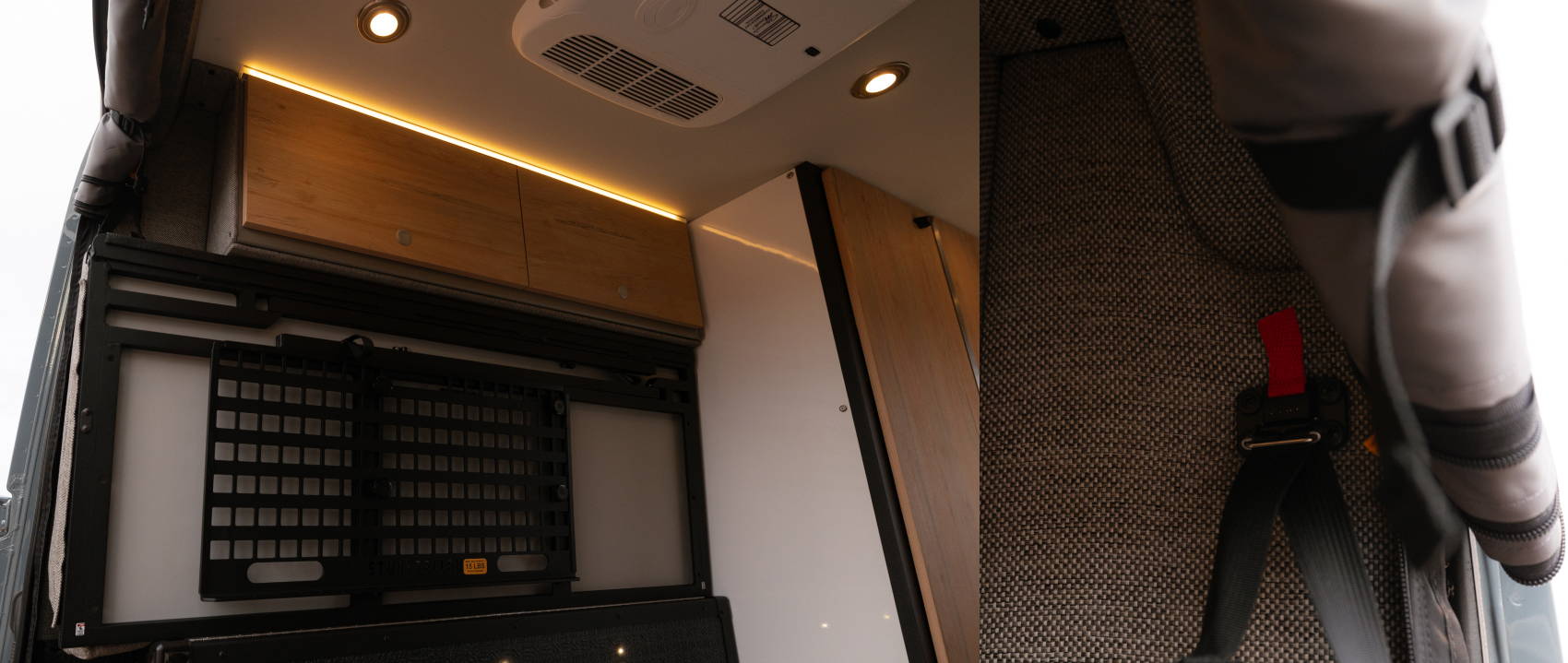

Diffused dimmable LED lights above upper cabinetry
Lighter, more modern finishes throughout
Updated stitch pattern on 2nd row seating
Refreshed “MODE” exterior 3D Badges
Modern elevated exterior graphics
The Classic MODE is purely and simply the ultimate overland vehicle for people seeking a more adventurous life! Whether you’re a daily driver, a weekend warrior, or a full-time explorer, you won’t miss any of the comforts of home in this versatile and rugged vehicle.
Diffused dimmable LED lights above upper cabinets
Lighter, more modern finishes throughout
Updated stitch pattern on 2nd row seating
Refreshed “MODE” 3D exterior badges
Modern elevated exterior graphics
Diffused dimmable LED lights above upper cabinetry
Lighter, more modern finishes throughout
Updated stitch pattern on 2nd row seating
Refreshed “MODE” exterior 3D Badges
Modern elevated exterior graphics

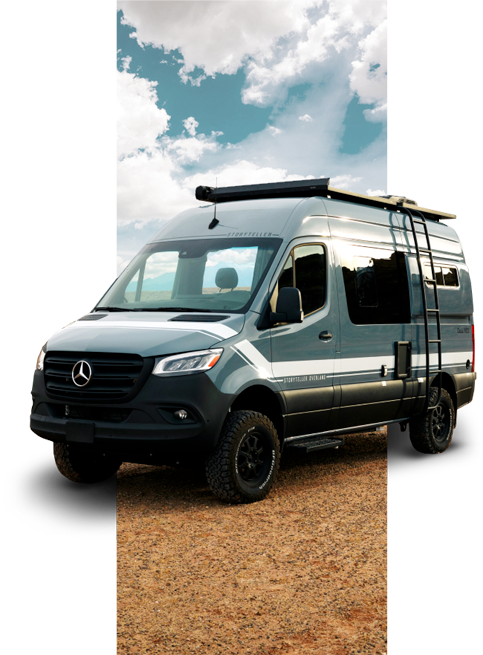

CLASSIC Xo exterior
Classic XO Features
Storyteller Wheels with All-Terrain Tires
Weights and Measurements
Classic MODE Exterior Length – 21’
Classic Exterior Height – 10’3”
MODE Exterior Width – 7’6”
Awning Width – 10’
Awning Extension – 7’
MODE Interior Height- 6’3”
MODE Flare Width- min 6’4”/max 6’7”
MODE Ground Clearance to Diff – 9.5”
Freshwater Tank Cap- 21 gal
Grey Tank Cap- 24 gal
Water Heater Cap- Continuous
Portable Toilet Cap- 2.6 gal
MODE Wheelbase – 144’
MODE GVWR – 9,050 lbs.
Sprinter Fuel Cap- 24.5 gal
Mercedes-Benz Sprinter
144” Wheelbase, High Roof, 2500
4-Cylinder Diesel High Output, AWD
LED High Performance Headlamps
Fog Lamp w/ Cornering Light Function
Heated, Swiveling Driver and Co-Driver Seats Rain Sensor
Rear Glass Tint and Defrost
Heated, Electrically Folding Mirrors

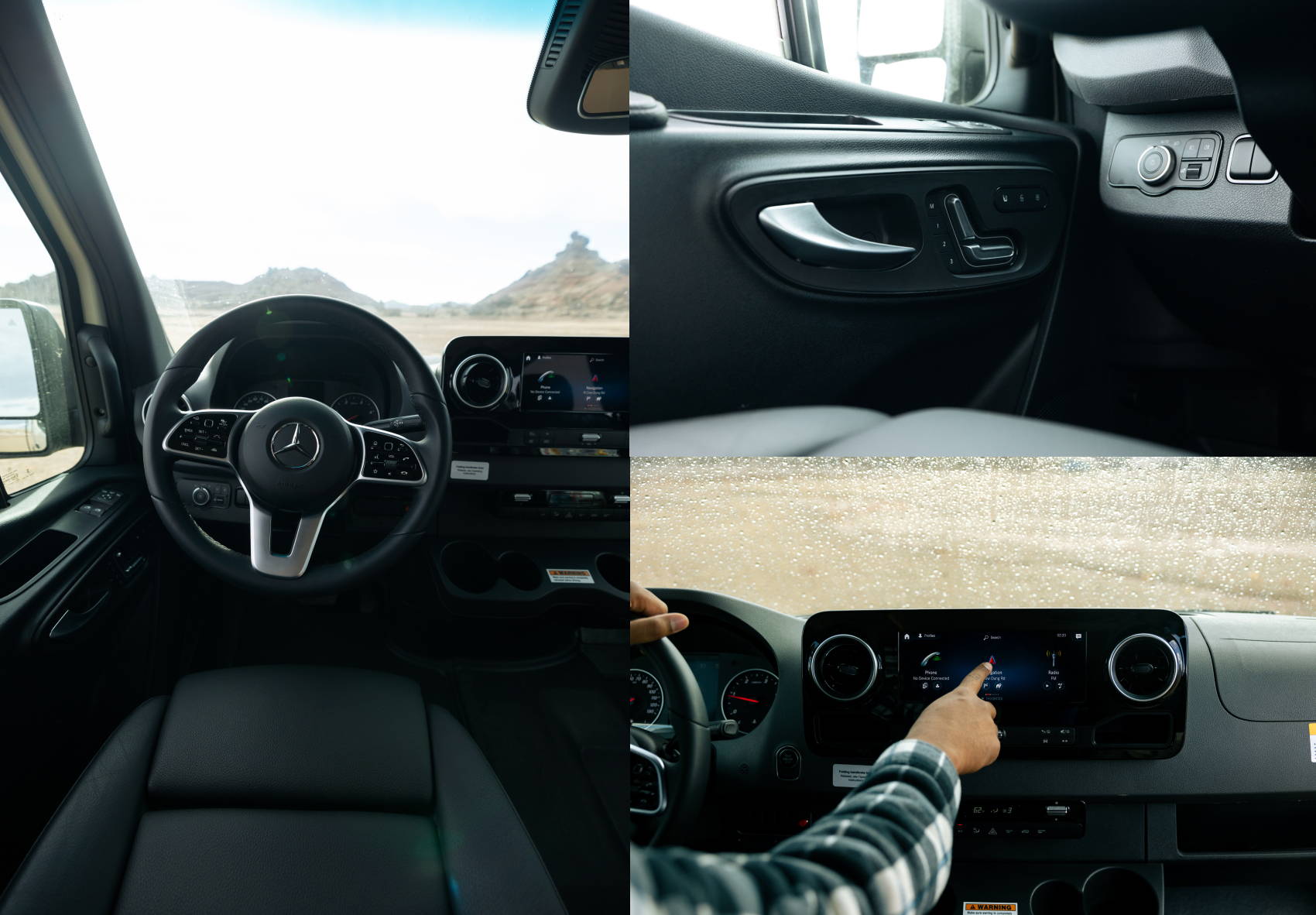

MBUX Multimedia System w/10.25” Touchscreen Parking Package w/ 360° Cameras
Satellite Radio
Intelligent Navigation
Smartphone Wireless Charging
Active Lane Keeping Assist
Active Brake Assist
Traffic Sign Assist
Assist Handle, B-Pillar
Interior
DreamWeaver™ Bed/Convertible Work Surface
ElectricSlide™ LoveSeat Power Recline Seats

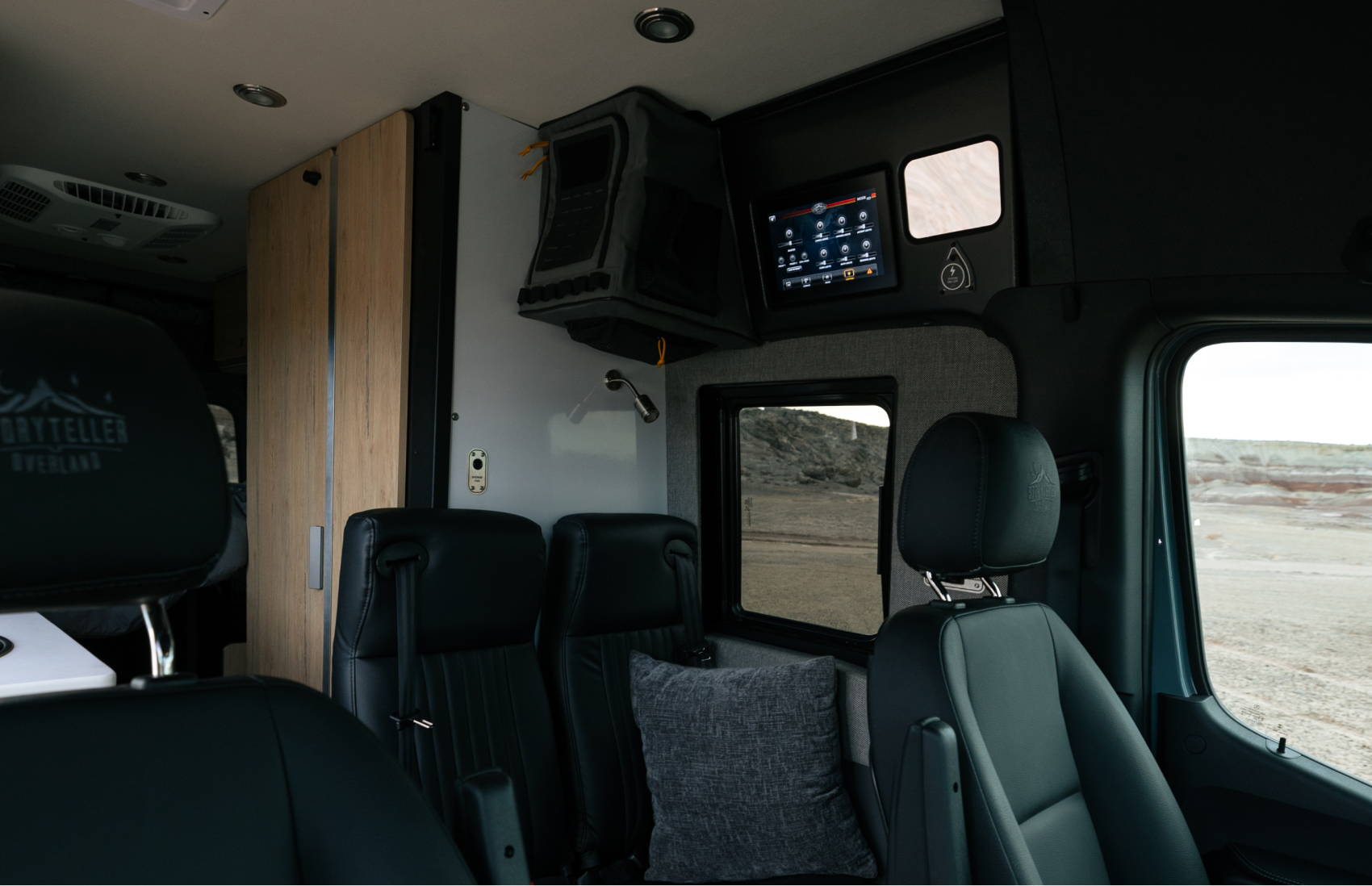

MODE COM 11" Touchscreen Control System
Removable Upper Cabinetry
High Powered Ceiling Intake/Exhaust Fan
Dimmable LED Ceiling Lights
Dimmable LED Under Cabinet Lights
Dimmable LED Cargo Area Lights
Dimmable LED Accent Lights
Cabin Air Conditioner
Diesel Fired Heating System
Water Control System
(8) 110V Outlets
(6) USB Ports
(2) 12V Outlets
Garage Cargo Area with L-Track

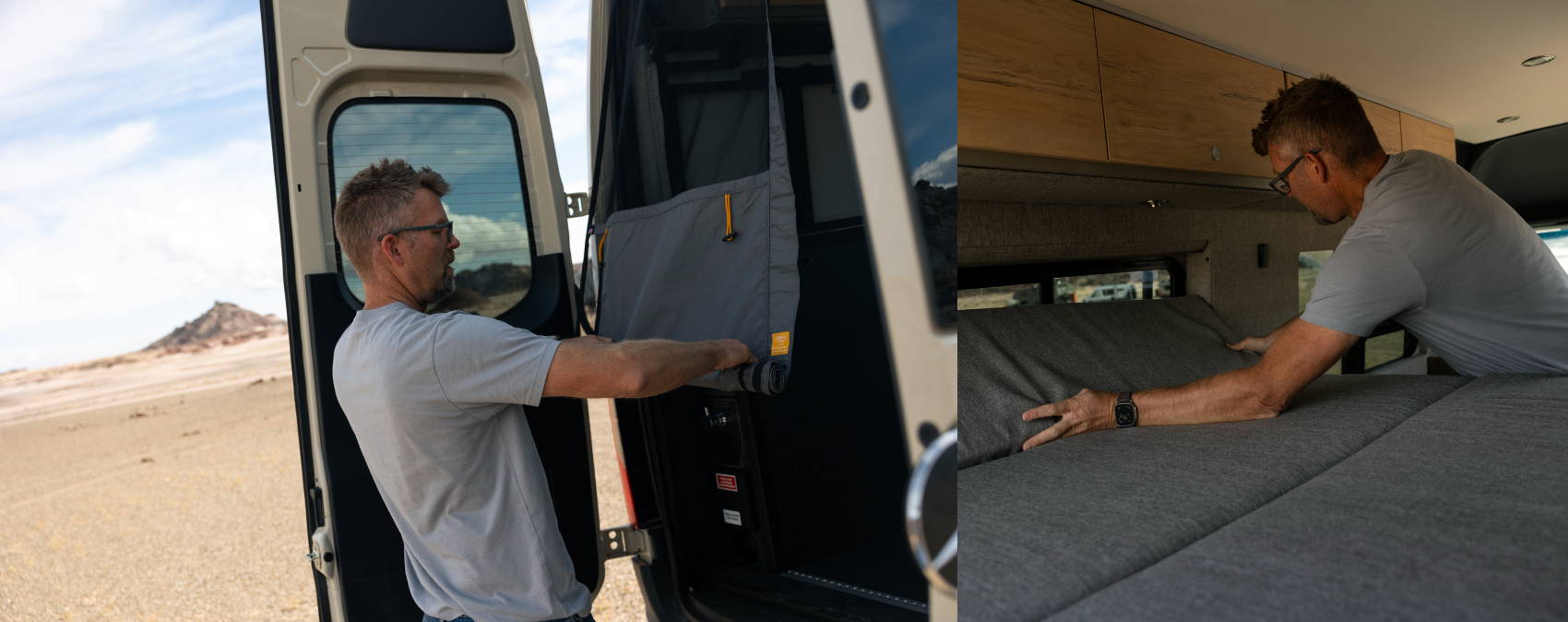

Sliding and Rear Door Bug Screens
Privacy Shades for all Windows

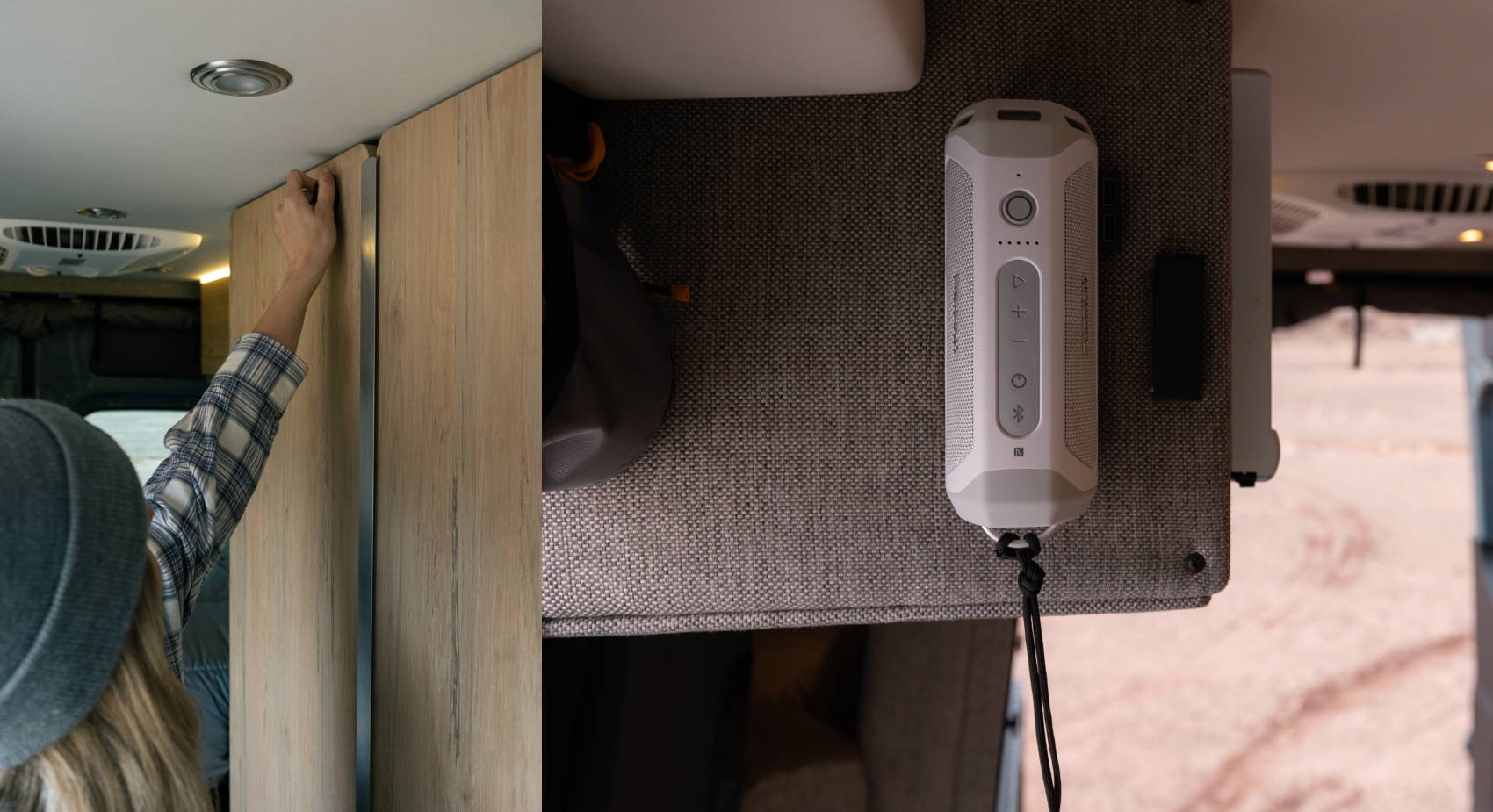

Portable Bluetooth Speaker
Sheep's Wool Insulation
Exterior
Roof Rack with Sonic Wedge Wind Deflector
Tubular Side Mount Ladder
Low Mounted Solar Port
Powered Awning with Dimmable LEDs
Running Boards
21 gal Fresh Water Tank (in Cabin)
24 gal Grey Water Tank with Heating Loop
City/Fresh Water Connection
Heavy Duty Shore Power Inlet
(4) 110V Outlets
Energy System
8.4kWh M-Power System (Powered by Lithionics®)
High Output Auxiliary Alternator
High Capacity Inverter Charger
Intelligent Power Distribution Modules (Managed by MODE COM)
90W Solar Panel, expandable up to 325W
30A Power Cord
Safety
Smoke / CO Detector
Fire Extinguisher
Ground Fault Circuit Interrupter

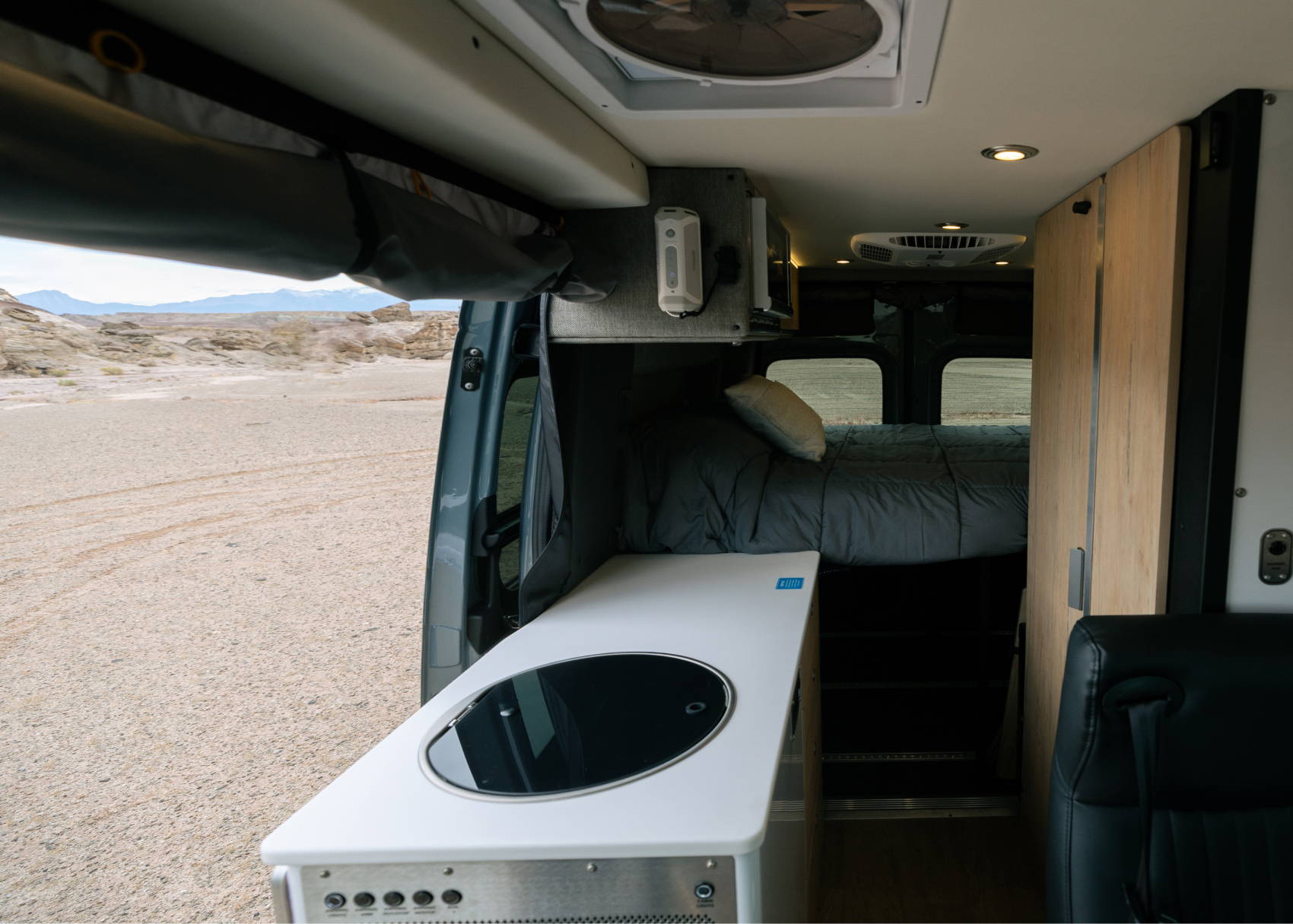

Galley
Stainless Steel Sink with Folding Faucet
Exterior Fold Down Table
Refrigerator/Freezer
Stainless Steel Microwave
Portable Induction Cooktop
Bath
BoomBoxTM shower/lavatory w/ removable molle shelves
Exterior Shower
Cassette toilet with freshwater flushing
Diesel Fired Water Heating System
Hot Water Recirculation System
Warranty
Storyteller Warranty:
1 Year/15,000 Mile Storyteller Overland Limited Warranty
Mercedes Benz Warranties:
3 Year/36,000 Mile New Vehicle Limited Warranty
5-year/100,000 Mile Federal Diesel Emissions
5-year/100,000 Mile Powertrain Limited Warranty
The most important part of Storyteller Overland:
Find a Dealer
Get connected with one of our adventure experts to help locate a dealer near you and reserve your model of choice. With our see-through, no-haggle pricing, you can rest assured you are getting the best deal possible anywhere in the country!
