Fuel: 52 gal
Fresh water: 120 gal
Gray water: 40 gal
Black water cassette: 4.75 gal
Batteries: 16.8 kWh
(2) 3000W inverters
Solar: 1325W
Seating: 4 cab shoulder belts
Sleeping: 2 queen beds
Of Wild-at-Heart Trailblazers Everywhere
Get ready to live full tilt and to the hilt in a vehicle designed to take you farther into the wild than you've ever been with greater confidence and creature comforts than you've ever experienced.
Overview & highlights
Innovative vacuum-infused resin composite with carbon fiber and Kevlar® reinforcements for your mobile dwelling space
RAM® 5500 chassis with 6.7 L diesel-powered awesomeness
16.8 kWh lithium-ion M-Power System (powered by Lithionics®) with two 3000W inverters
1325W sustainable solar-powered off-grid radness
Closed-cell acoustic and thermal insulation for quiet, climate-controlled comfort
Proprietary Zero Torsion Subframe for enhanced stability and performance
Specially tuned active hydraulic smart suspension system by LiquidSpring®
Refined, spa-like interior with a fusion of modern, sustainable materials and surfaces to elevate your experience and sooth your senses.
360-degree full spectrum trail lights by KC HiLiTES®, because the adventure doesn’t stop at sunset
Custom Flarespace nVader style rear racks and storage system
20,000 lb. winch for self recovery
Overview & highlights
Innovative vacuum-infused resin composite with carbon fiber and Kevlar® reinforcements for your mobile dwelling space
RAM® 5500 chassis with 6.7 L diesel-powered awesomeness
16.8 kWh lithium-ion M-Power System (powered by Lithionics®) with two 3000W inverters
1325W sustainable solar powered off-grid radness
Closed cell acoustic and thermal insulation for quiet, climate-controlled comfort
Proprietary Zero Torsion Subframe for enhanced stability and performance
Specially tuned active hydraulic smart suspension system by Liquid Springs®
Refined, spa-like interior with a fusion of modern, sustainable materials and surfaces to elevate your experience and sooth your senses.
360-degree full spectrum trail lights by KC HiLiTES®, because the adventure doesn’t stop at sunset
Custom Flarespace nVader style rear racks and storage system
20,000 lb. winch for self recovery
SEE-THROUGH PRICING
$446,322*
SEE-THROUGH PRICING
$446,322*
PERFORMANCE
Proprietary Zero Torsion Subframe: stable and sure-footed.
We spent countless hours developing a special zero torsion subframe system that allows independent movement of the capsule from the chassis. This reduces overall stress to the capsule and improves off-road traction.
Insulation: Separate yourself from the elements.
Each HILT capsule is insulated with up to 2” of closed cell foam, making it as comfy and efficient as possible in freezing and soaring temperatures.
Exterior Lights: Adventure doesn’t stop at sunset.
Extreme off-roading requires an extreme 360-degree exterior lighting package. In addition to 4 high-powered bumper mounted LEDs, the HILT’s front light bar features five 8-inch KC HiLiTES® and there are also eight 10-inch KC HiLiTES® perimeter light bars mounted around the exterior.
So hit the trails all night long — light won’t be an issue, we promise.
LiquidSpring® Smart Suspension: No road? No problem. You need a suspension that can support you wherever your adventures take you.
Your HILT will have a specially tuned hydraulic Smart Suspension System from LiquidSpring®. This system evaluates speed, steering, braking, and road inputs 1,000 times per second and adjusts for extremes, including automatic ride height adjustment with raising and kneeling capabilities for maximum maneuverability.
So whether you’re off-road or driving through city streets, this system will deliver the smoothest ride possible.
TECHNOLOGY
Energy System: Ready to power any adventure.
We’re keeping our reputation for building vehicles that can power any adventure. The HILT comes with a 16.8 kilowatt-hour M-Power System (powered by Lithionics) with two 3000-watt, heavy-duty, high-efficiency inverters. And you can easily manage all your lights and temperature controls with your Mission Control touch screen.
Solar: Meaningful solar output.
1325 watts of solar panels on the roof of your HILT means you can give your battery life a significant boost during the day. Say goodbye to plugs and hookups and just enjoy going off-grid for a while.
15,000 BTU
Air Conditioner
16.8 KWh
M-Power System
Two 3000W
inverters
Separate yourself from the elements.
Separate yourself
from the elements.
cabin
Rugged on the outside, refined on the inside.
From the outside, the HILT is rugged and tough. But step inside and you're surrounded by a comfortable, natural habitat that makes you feel at home no matter how extreme the environment around you may be.
6’7”
Interior height
12.25 FT3
Upper cabinets
total storage capacity
6.8 FT3
Closet capacity
270-degree views of your campsite with
integrated shades and bug screens.
Dimmable and programmable mood lighting. Warm tones and soft, buttery leather-like seating.
Rounded wood corners.
Your home away from home is built
with luxury and comfort in mind.
Bath
Spacious & serene wet bath.
Your roomy wet bath has 6 feet and 5 inches of standing room. With 120 gallons of freshwater on-board, you can splurge on multiple long, hot showers during your off-grid trip.
In addition to a shower, sink and flushable cassette toilet, you’ll also appreciate the large mirror, dry storage and retractable clothes line.
6’5”
bathroom interior height
4.75 gal
toilet capacity
120 gaL
freshwater
40 GAL
grey water tank
(electrically heated)
Kitchen
Home cooked meals, even when you’re not at home.
With a stainless steel convection oven, microwave, and air fryer, plus a 1800-watt dual burner induction cooktop, you can bring all the joys of home cooking with you on your off-road adventure.
Your quiet, stainless steel fridge and freezer has 6.9 cubic feet of interior volume, perfect for going off-grid for a while without stopping in town to resupply.
The countertop has rounded corners and a large sink with a cover. In addition to having a faucet with hot and cold controls, we’ve also integrated a Guzzle H2O® water purification system so you can have fresh drinking water without installing any extra filters.
You also have seven drawers in the galley with a total capacity of 60 gallons, plus a pull-out trash bin. And across from the kitchen is a 7 cubic feet closet with a hanging rod and foldaway shelves.
Refrigerator Volume: 4.6 ft3
Freezer Volume: 2.3 ft3
7 Galley Drawers 8 ft3 storage capacity
Dinette
Community space during the day. An extra bed at night.
The dinette is your space for eating delicious home-cooked meals, playing card games with family and friends, and lounging after a day filled with adventures. Or maybe your dog will claim this comfortable seating for themselves.
The dinette comfortably seats four to five adults. It also very quickly converts into a queen sleep surface after you stow away the table and leg.
Dinette sleep surface:
60” x 78” // Seating for 4-5 adults
Bed
Your new favorite place for falling asleep under the stars.
The loft queen bed has 3.7 cubic feet of total bin storage, and you’ll stay connected with 12-volt USBs, 110-volt outlets and wireless charging stations next to the mattress.
The bed is a traditional queen bed size — 60 by 80 inches — and will comfortably sleep adults 6 foot 8 and shorter.
Headspace:
tallest point: 26”
lowest point: 10”
3.7 ft3 of bin storage
Upping the Game On Quality, Lowering The Barrier To Entry On Price
We believe adventure belongs to everybody, which is why we’re manufacturing this best-in-class adventure truck at scale. This means you’ll get a highly engineered truck with all the benefits of buying off of Storyteller Overland’s production line.
RV financing
available
Nationwide sales
& service network
RVIA certification
coming soon!
floor plan + dimensions
Dinette seating: 70" W x 55" L x 14" H (with cushions)
Dinette table: 20" W x 30" L
Closet Interior: 15" W x 22" L x 51" H
Stainless Steel Refrigerator/Freezer:
Refrigerator Volume: 4.6 ft3
Freezer Volume: 2.3 ft3
Wet bath: 28" W x 42" L x 78" H
Galley countertop: 70" L x 24" W
Sink: 27” x 16” x 7”
Dual induction cooktop: 24" W x 16” D
5 storage drawers in total + trash bin
Entry door: 26" W x 78" H
Pass-through door: 24" W x 27" H
Loft:
Queen size bed
Headspace: 26” (tallest) 10” (lowest)
Storage compartment: 8" W x 63" L x 7" H (x2)
Dinette seating: 70" W x 55" L x 14" H
(with cushions)
Dinette table: 20" W x 30" L
Closet Interior: 15" W x 22" L x 51" H
Stainless Steel Refrigerator/Freezer:
Refrigerator Volume: 4.6 ft3
Freezer Volume: 2.3 ft3
Wet bath: 28" W x 42" L x 78" H
Galley countertop: 70" L x 24" W
Sink: 27” x 16” x 7”
Dual induction cooktop: 24" W x 16” D
5 storage drawers in total + trash bin
Entry door: 26" W x 78" H
Pass-through door: 24" W x 27" H
Loft:
Queen size bed
Headspace: 26” (tallest) 10” (lowest)
Storage compartment: 8" W x 63" L x 7" H (x2)
*All measurements are estimated and can vary
full specs
RAM® CHASSIS CAB*
- 5500 Laramie Crew Cab
- 6.7L Cummins Turbo Diesel
- 800 lb-ft torque / 360 hp
- 6-Speed HD Transmission
- Fuel Capacity: 52 gal
- High Idle
- LED Headlamps / Tail Lamps
- Normal Ride Setting:
- Approach Angle: 33.1°
- Departure Angle: 20.8°
- Breakover Angle: 10.8°
- Ground Clearance:
- Front: 18"(DEF canister)
- Rear: 10.5"
High Ride Setting: - Approach Angle: 36.3°
- Departure Angle: 21.5°
- Breakover Angle: 17°
- Ground Clearance:
- Front: 22" (DEF canister)
- Rear: 10.5"
Capacities
- Fuel: 52 gal
- Fresh water: 120 gal
- Grey water: 40 gal
- Black water cassette: 4.75 gal
- Batteries: 16.8 kWh
- (2) 3000W inverters
- Solar: 1325W
- Seating: 4 cab shoulder belts
- Sleeping: 2 queen beds
Exterior Features
Liquid Springs® Smart Suspension System:
Liquid Springs Smart Suspension System evaluates speed, steering, braking and ride height 1,000x per second to automatically optimize your ride quality, handling characteristics, and peace of mind.
3 ride heights and 3 performance modes selectable on the fly
7.5” total travel
Hutchinson® wheels with 41” Multi Purpose Tires:
3 piece bead lock wheels capable of extremely low psi without de-beading
Full-size spare with electric winch system
Liquid Springs Smart Suspension System evaluates speed, steering, braking and ride height 1,000x per second to automatically optimize your ride quality, handling characteristics, and peace of mind.
3 ride heights and 3 performance modes selectable on the fly
7.5” total travel
Hutchinson® wheels with 41” Multi Purpose Tires:
3 piece bead lock wheels capable of extremely low psi without de-beading
Full-size spare with electric winch system
- Onboard air system, dual air chucks with dual ARB compressors and 1 gal tank
- Rugged custom BuckstopTM bumper
- High pressure spray-on bedliner
- 20k lb winch with synthetic rope
Extreme 360° lighting package: - (8) 10” KC HiLiTES® perimeter light bars
- (5) 8” KC HiLiTES® front lights
- (2) bumper mounted KC HiLiTES® fog lights
- (2) bumper mounted KC HiLiTES® spot lights
- (2) nVader rear storage racks
- (3) Lockable cargo hatches and large lockable pass-through storage area
- 13’ Dual pitch awning
- Automatic entry electric steps
Interior Features
Sleeps 4 adults:
- Rear dinette converts to queen size bed
- Queen size bed in front loft area

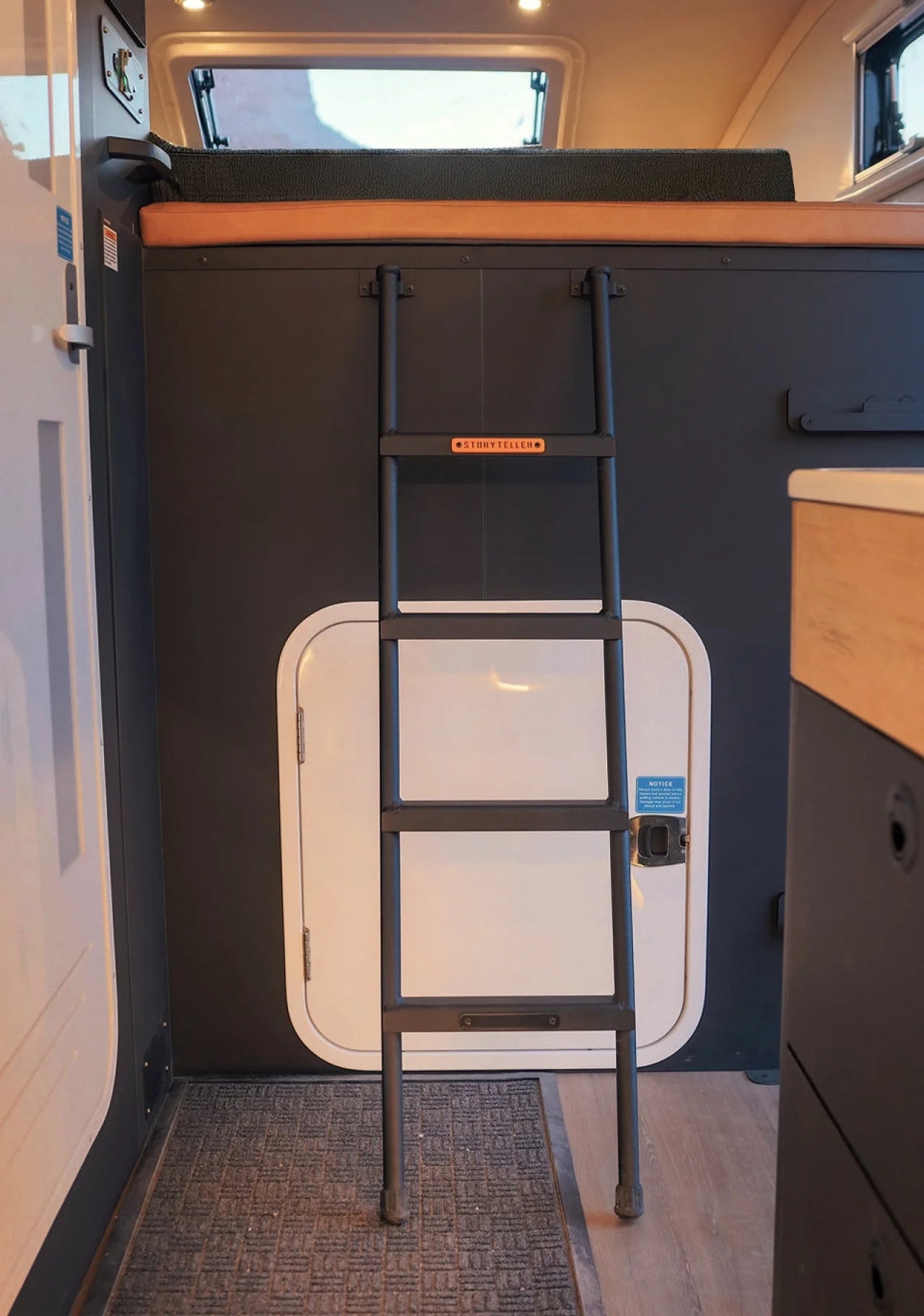

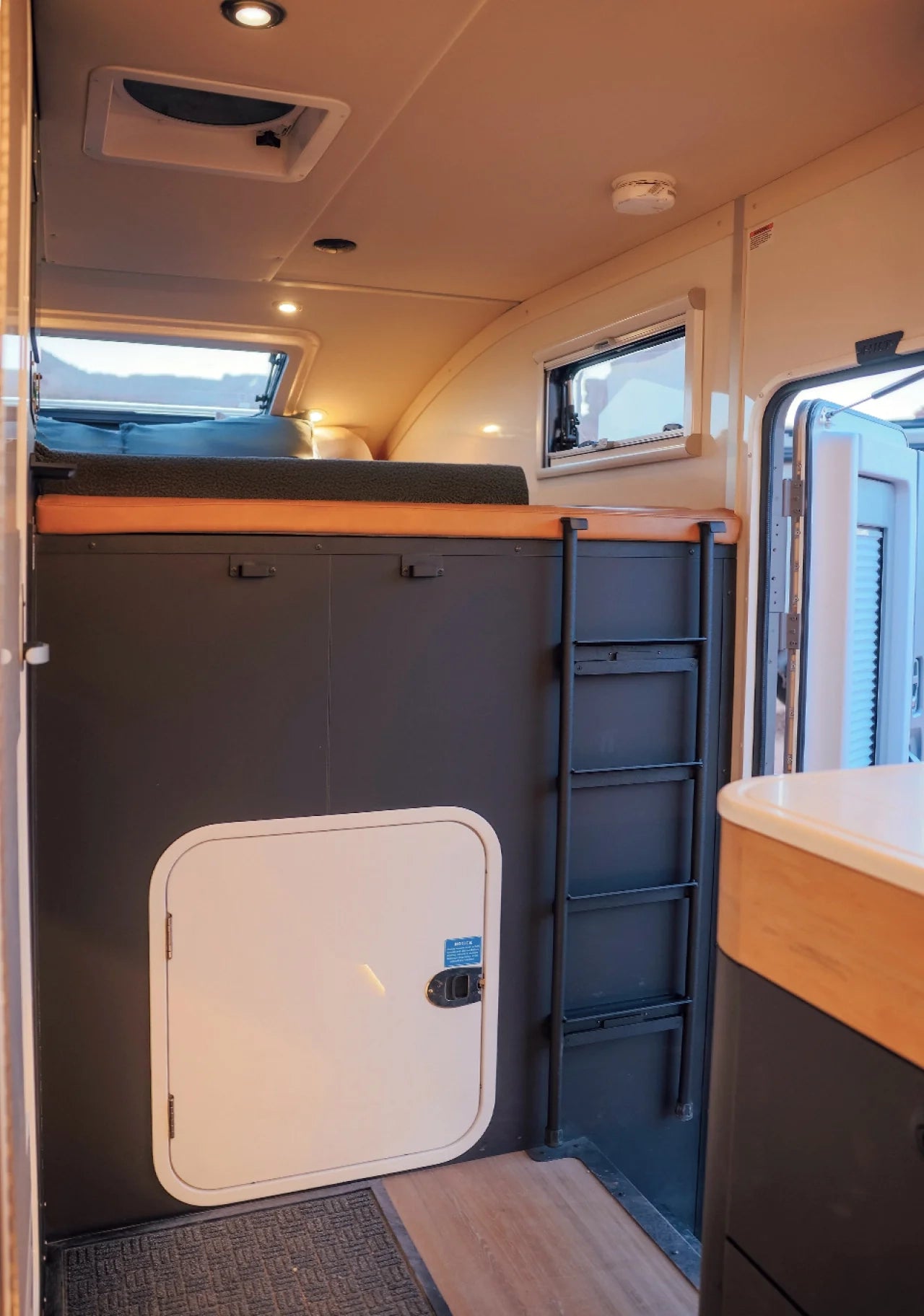

- Assist ladder for loft bed
Storage:
- 5 galley storage drawers and pull-out trash bin
- Upper cabinet storage
- Storage boxes in loft area with phone chargers
- Touchless black cabinets with wood grain highlights
- Gloss white walls
- Dinette with seating for 4 adults
- MISSION Control full color touchscreen display
Bath
- 120 gal fresh water, 40 gal grey water (electrically heated)
- Wet bath with shower and sink
- Flushable cassette toilet
- Exhaust fan
- Dry storage, mirror, retractable clothes line
Energy System
- M-Power™ System, 16.8 kWh (powered by Lithionics®)
- (2) 3000W inverters
- High idle on RAMs
- 1325W MerlinTM solar panels
- MISSION Control full color touchscreen display
Heating, Ventilation, and Air Conditioning
- 10k Btu hydronic heat system with 2 air handlers
- 15k Btu A/C, Ducted Front and Rear
- 360° closed cell foam insulation
- (2) deluxe exhaust fans w/ built-in rain guard
- Wet bath exhaust fan
Safety
- Smoke / CO Detector
- Fire extinguisher
- Ground fault circuit interrupter
- Locking toilet cassette door
Warranty
Storyteller Warranty
1 Year/15k Mile New Vehicle Limited Warranty
3 Year/36k Mile Limited Capsule Structural Warranty
1 Year/15k Mile New Vehicle Limited Warranty
3 Year/36k Mile Limited Capsule Structural Warranty
